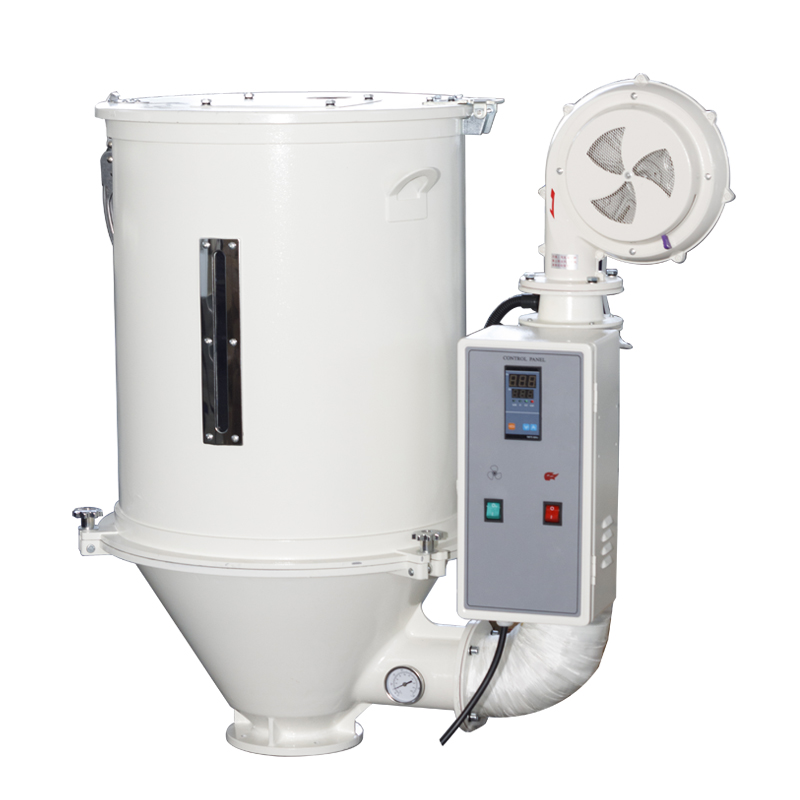

Hopper dryer Details

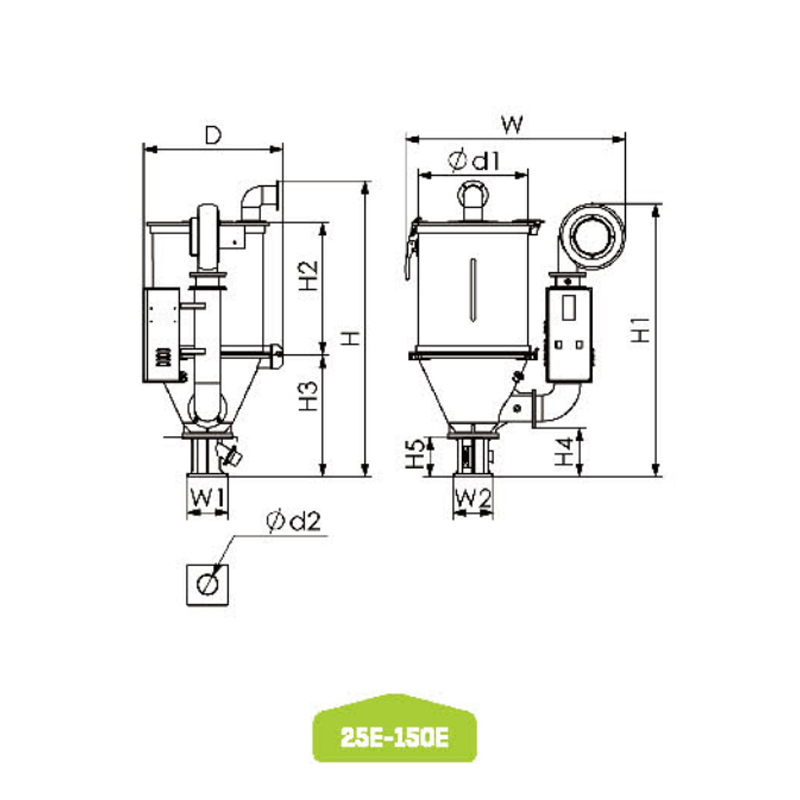

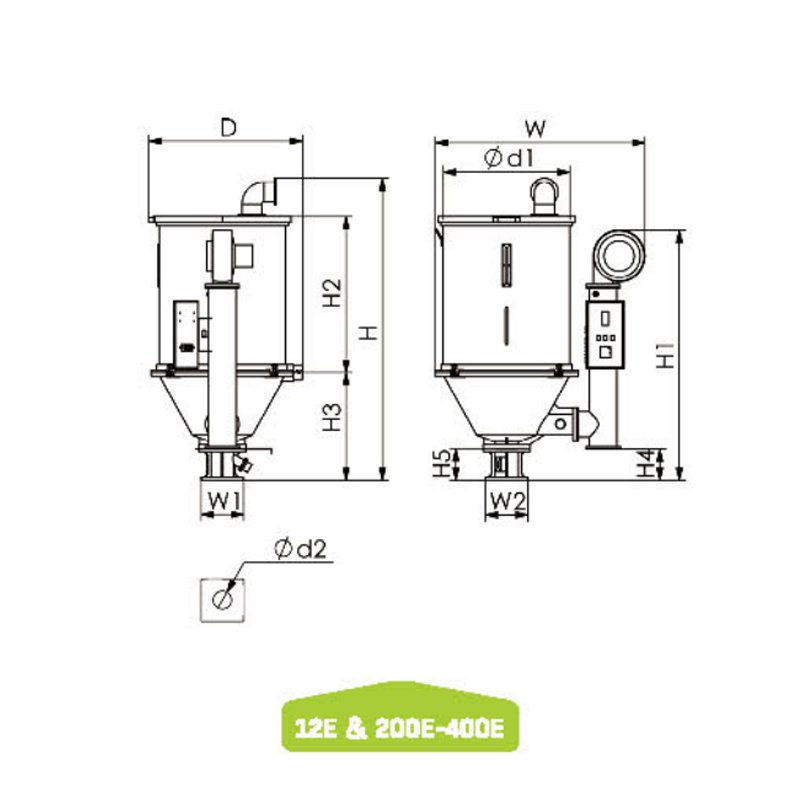

Type	HHD-12E	HHD-25E	HHD-50E	HHD-75E	HHD-100E	HHD-150E
LoadIng capaclty(kg）	12	25	50	75	100	150
Haatlng pawer(kW）	2.1	2.7	3.9	5	6.4	7.8
Blawer paw(kW）	0.14	0.14	0.17	0.17	0.35	0.35
welght(kg）	20	32	43	48	75	82
H(mm）	820	990	1165	1250	1425	1520
H1(mm）	690	945	1075	1140	1220	1325
H2(mm）	380	465	530	620	735	785
H3(mm）	325	415	480	475	535	580
H4(mm）	45	190	195	200	225	240
H5(mm）	110	160	160	160	175	175
D(mm）	430	490	545	610	685	760
d1(mm）	300	350	435	495	550	630
d2(mm）	42	61	74	74	81	81
W(mm）	600	745	865	920	1040	1105
W1(mm）	110	150	160	160	180	180
W2(mm）	110	150	160	160	180	180

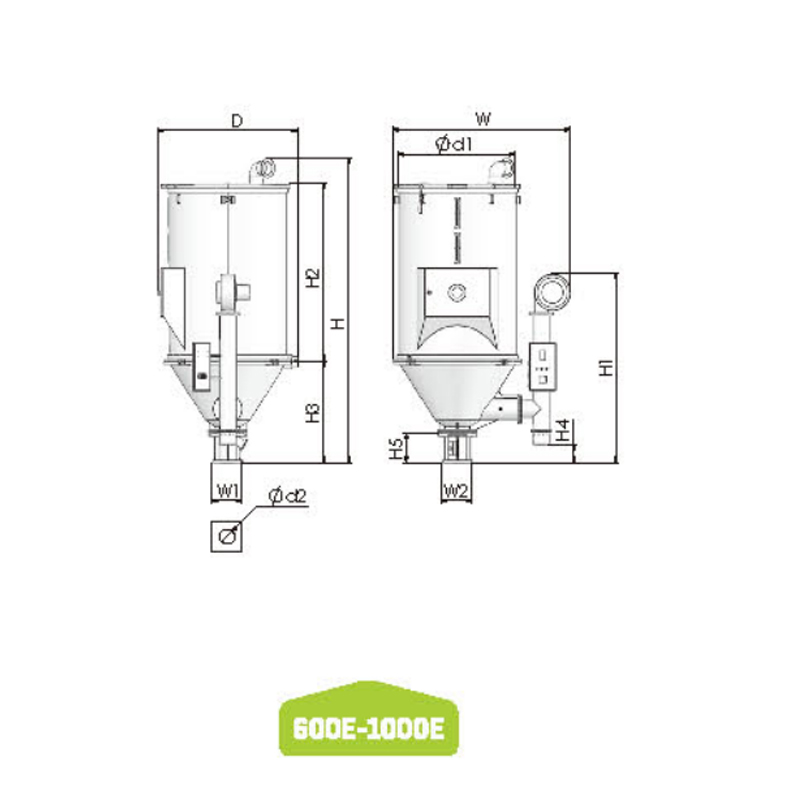

Type	HHD-200E	HHD-300E	HHD-400E	HHD-6OOE	HHD-800E	HHD-1000E
Loading capacity (kg)	200	300	4DD	600	800	1000
Heating power (kW)	ID	15	20	27	32	32
Blower powor (kW)	0.75	0.75	0.75	0.75	1	1
Weight (kg)	120	150	215	295	320	410
H (mm）	1B85	1855	1995	2290	2BB5	2830
H1 (mm）	1415	1560	1630	17D5	1705	1750
H2 (mm）	840	935	1035	1270	1850	1650
H3 (mm）	6D5	685	710	7B5	765	930
H4 (mm）	205	215	205	120	120	155
H5(mm）	200	210	21 0	255	255	27D
D (mm）	860	935	1015	1180	1180	1310
d1 (mm）	700	760	835	995	995	1095
d2 (mm）	115	120	120	135	135	135
W (mm）	1200	1305	1410	1580	1580	1655
W1(mm）	230	280	320	320	320	320
W2(mm）	230	280	320	320	320	320

Trustworthy operational system which to fulfill every demand

This system features high stability and highresponse speed，using colorful LCD. Easyoperation of man- machine interface, also ithas a number of peripheral interfaces.
Control system applies all digital computer special controller, with multiple CPU division processing.It has multi-function automatic fault detection and alarm system. It capable to storage99 sets moulds processing procedure. Equip with remote control interface.This system featureshigh stability and high response speed, using colorful LCD.Easy operation of man- machineinterface, also it has a number of peripheral interfaces."

STABLE AND RELIABLE OFELECTRIC CONTROLSYSTEM

Control system applices all digital computer special controller, with multiple CPU division processing.
1.strong function and easy operation
2.High quality electrical elements,enhanced
3.hardware circuits, strong anti-interference ability,Stable and reliable of electric control system reliable running and high stability.

HIGH STABILITY,ACCURACY AND HIGH REPEATABILITYINJECTION UNIT

Six zone injection and five zone pressure protection areseparately controlled by precise linear transducer andtime control.Each zone action pressure and speed canbe setting as demand. It features stable injection andaccurate pressure protection,high repeatability. Theresidual stress of molded products is stable andconsistent.

Using world famous valves to control injection molding actionsprecisely, make the system performance stability and reliability.

Main hydraulic components, sealing ringsand high pressureflexible hose are worldfamous brands.
Oil distirbute block placed in reasonable way,the system has fast response and excellentdynamic performance.

MOULD PLATEN HIGH RIGIDITY ANDSMOOTH MOVEMENT

1.Oblique arranged double toggle mechanical mould clamping unit
2.Mould cooling water distributor
3.Low pressure mould protection device
4.cores installation standard interface
5.Multi-zone mould open& close pressure, speed and position control
6.Automatic centralized lubrication system
7.Multi type hydraulic ejector modes
8.Linear transducer control mould open& close and ejector
9.Fast speed mould close pressure differential device
10.Auto mould thickness adjustment (optional)
